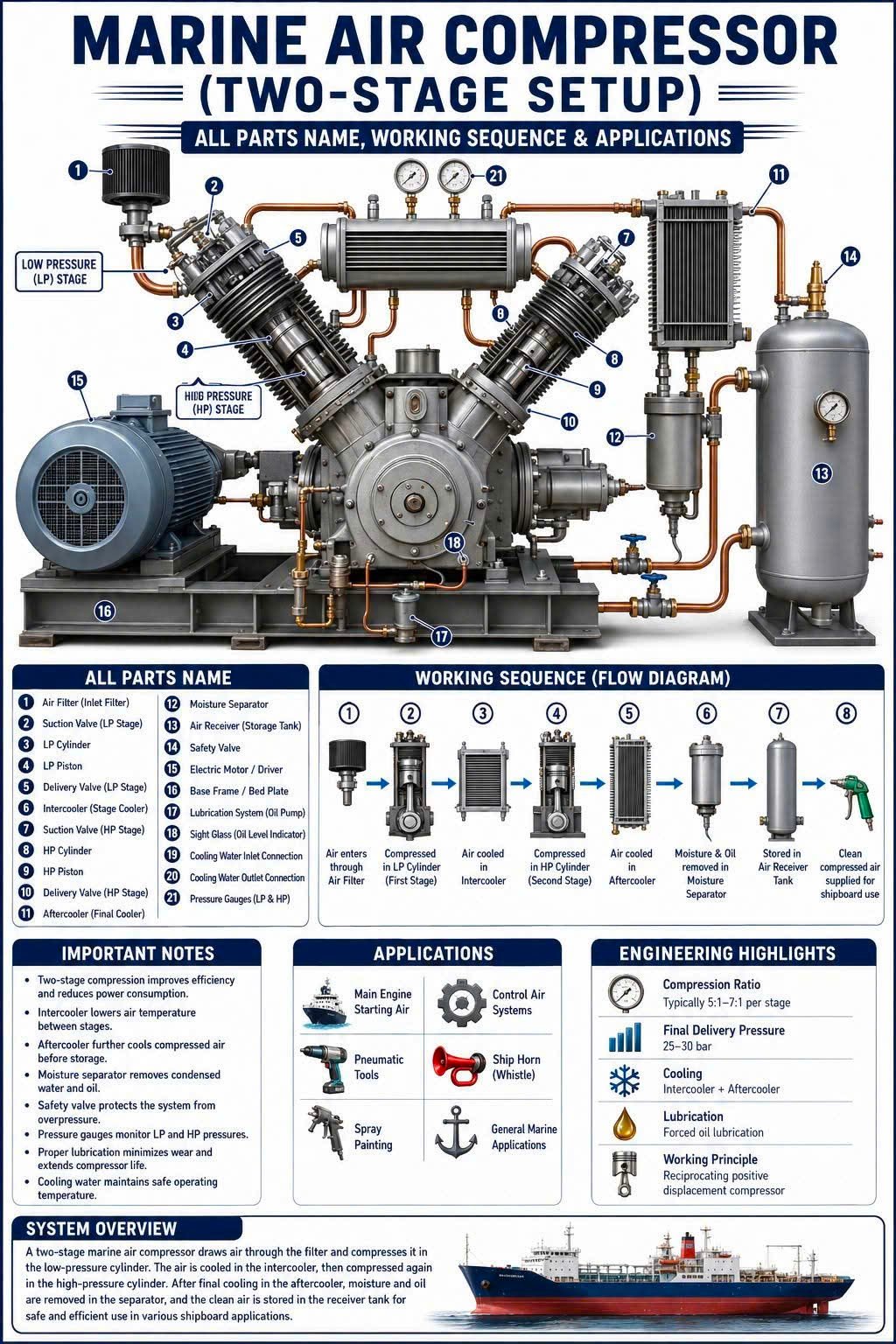

Marine Air Compressor: Starting Air System

• ️ Marine Air Compressor – The Heart of a Ship's Starting Air System! 🚢

Every marine diesel engine relies on a dependable marine air compressor to provide high-pressure compressed air for safe and reliable operation. A two-stage compressor improves efficiency by compressing air in two steps with intercooling, delivering clean, dry air for critical shipboard systems.

• How it works:

1️⃣ Air enters through the intake filter.

2️⃣ Low-pressure (LP) cylinder performs the first compression.

3️⃣ Intercooler reduces air temperature.

4️⃣ High-pressure (HP) cylinder compresses the air further.

5️⃣ Aftercooler cools the compressed air.

6️⃣ Moisture separator removes water and oil.

7️⃣ Air receiver stores compressed air.

8️⃣ Clean high-pressure air is supplied for ship operations.

• Main Applications:
• Main engine starting air
• Control air systems
• Pneumatic tools
• Ship whistle (horn)
• Spray painting
• General marine services

💡 Did You Know? A typical two-stage marine air compressor delivers 25–30 bar pressure and uses intercoolers and aftercoolers to improve efficiency, reduce power consumption, and protect the system from overheating.

📘 Save this guide for your marine engineering reference and share it with fellow seafarers!
